UNIEPU
AC/DC Hybrid
Hybrid ACDC Solar Water Heater (WiFi) PVSWH Series
AC/DC hybrid PV water heater, 60-100L.

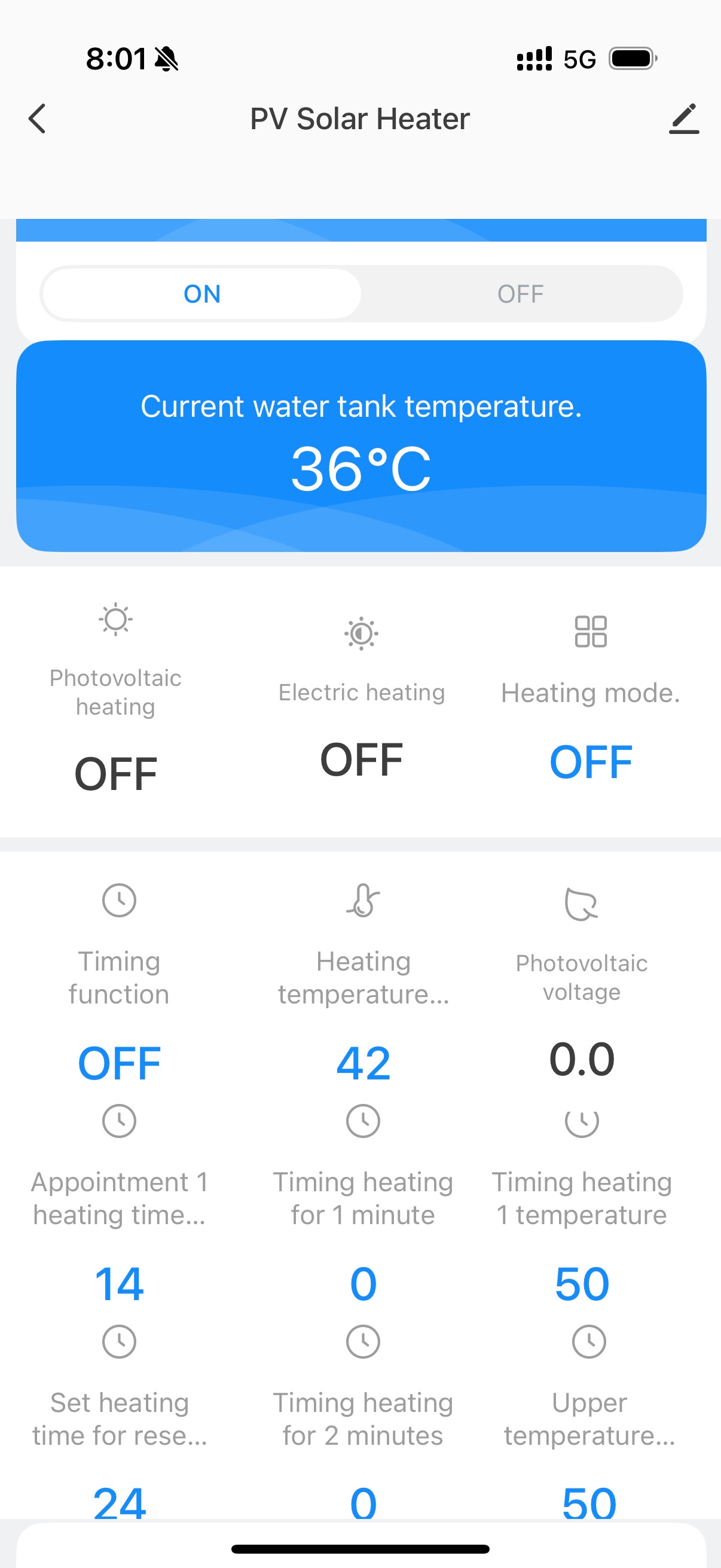

Works directly with solar panels. WiFi control.

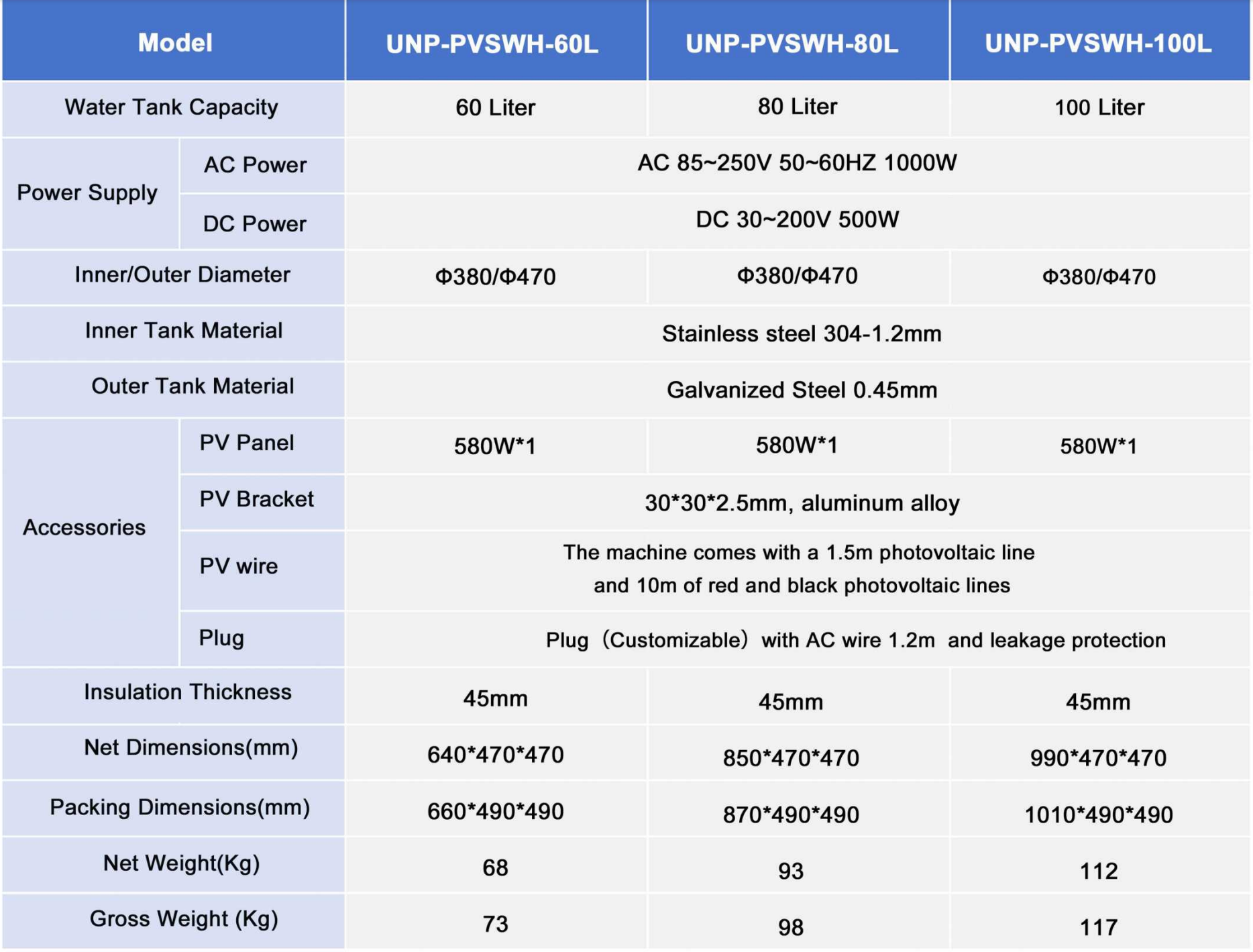

| Parameter | Value |
|---|---|
| Models | UNP-PVSWH-60L / UNP-PVSWH-80L / UNP-PVSWH-100L |
| Tank Capacity | 60L / 80L / 100L |
| AC Power | AC 85~250V 50-60Hz 1000W |
| DC Power | DC 30~200V 500W (direct PV input) |
| Tank Diameter | Inner Ф380 / Outer Ф470 |
| Inner Tank | Stainless Steel 304-2B 1.2 mm |
| Outer Tank | Galvanized Steel 0.45 mm |
| Insulation | 45 mm High-Density PU Foam |
| Net Dimensions | 640×470×470 / 850×470×470 / 990×470×470 mm |
| Packing Dimensions | 660×490×490 / 870×490×490 / 1010×490×490 mm |
| Net Weight | 68 / 93 / 112 Kg |
| Gross Weight | 73 / 98 / 117 Kg |
| Loading Qty | 86-64 / 201-139 / 237-165 sets (20GP/40GP/40HQ) |
| Includes | PV cable 1.5m + 10m red/black wire + AC plug with leakage protection |
| Recommended PV Panel | 580W mono/ poly (sold separately) |
Customization
Available Customizations & Accessories
We offer flexible customization options to meet your specific project requirements.
- OEM / Private Label available
- Custom PV panel configuration (580W mono/poly)
- WiFi controller included
- Custom plug types for different countries
- PV bracket customization
- Extended cable length options
Get a Quote for This Model
Tell us your quantity and destination port — we reply within 12 hours.
