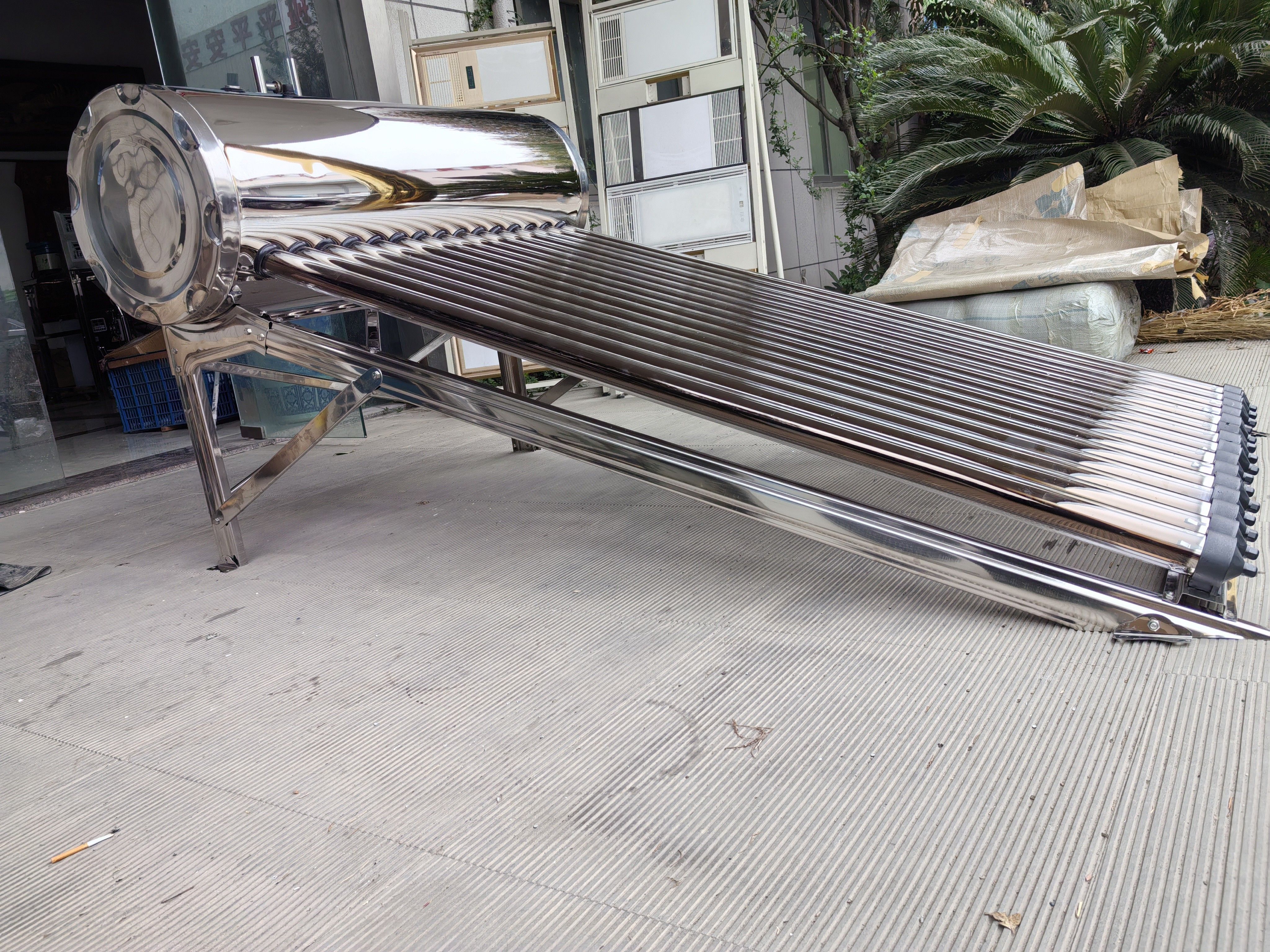

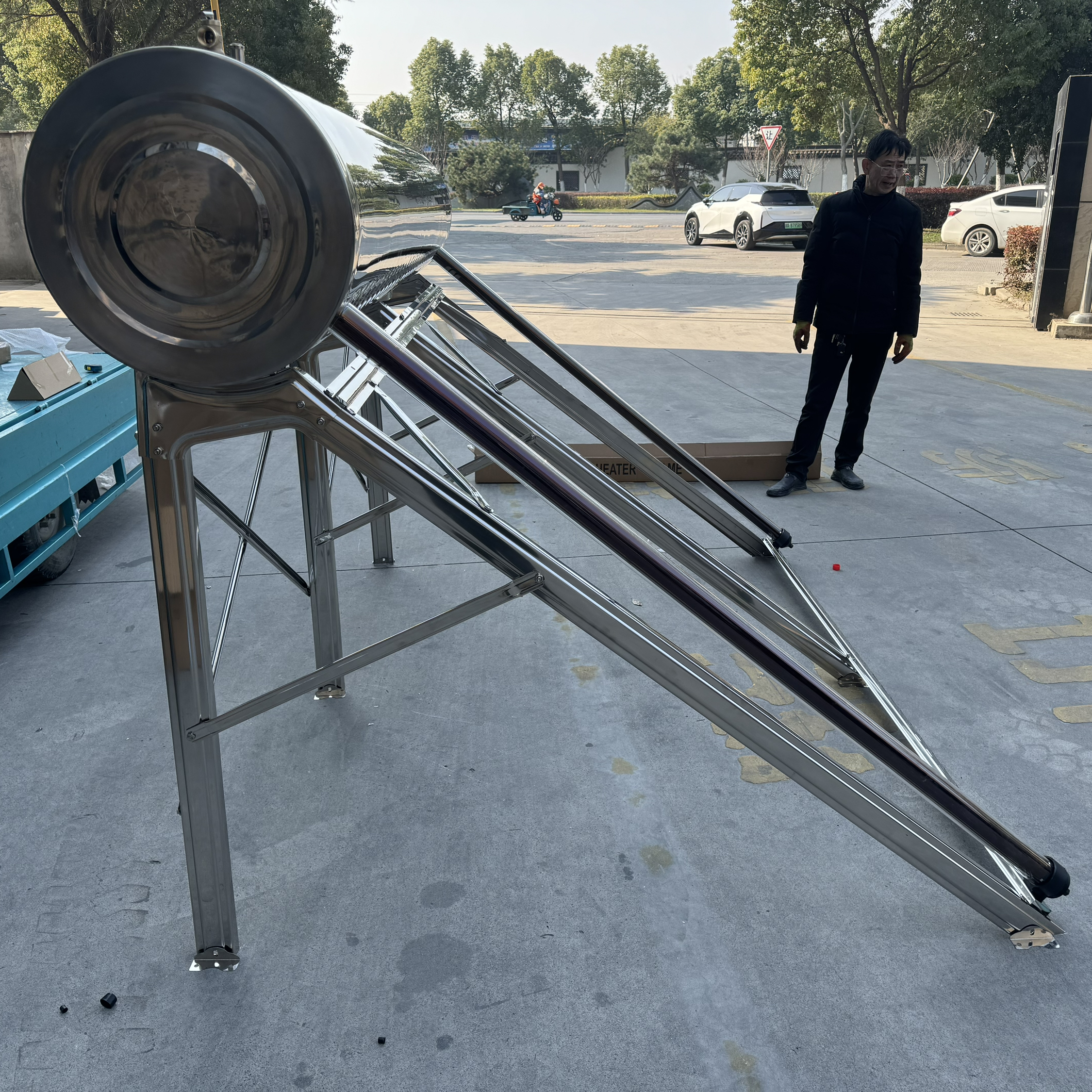

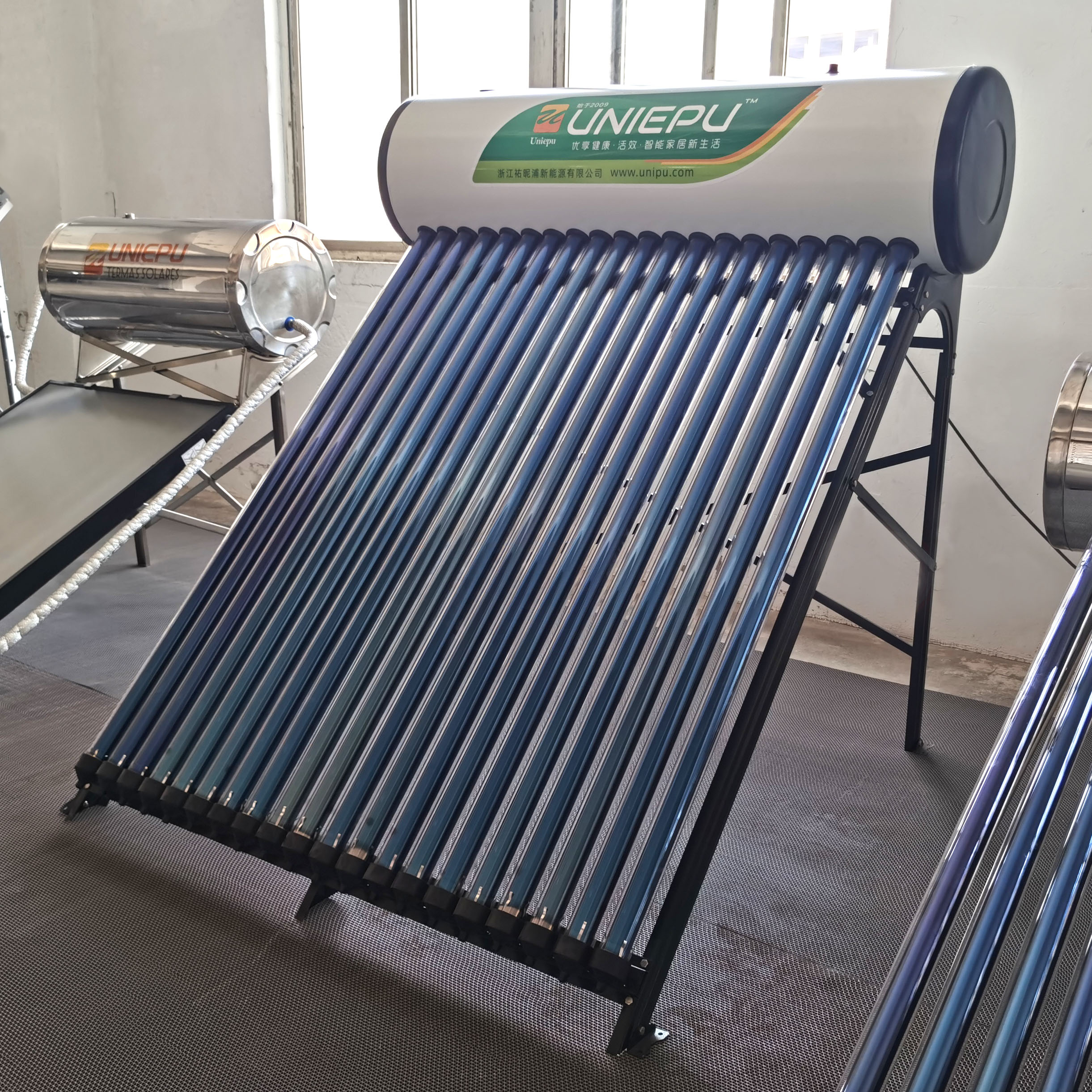

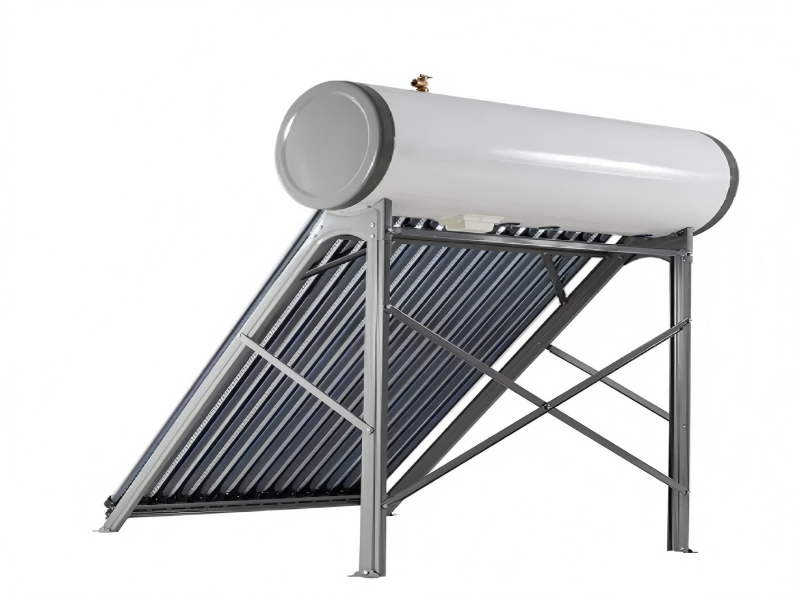

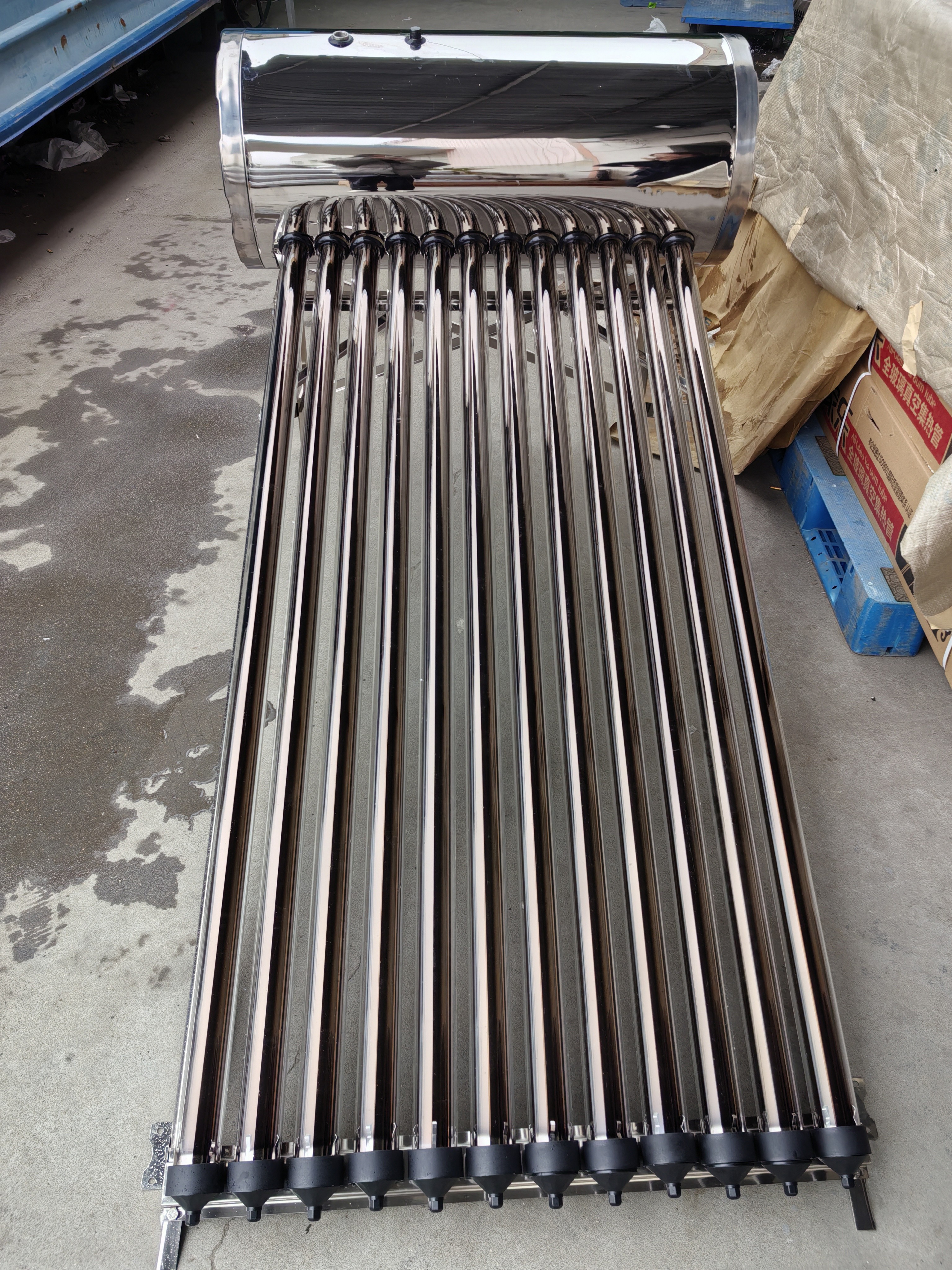

Integrative Pressurized Solar Water Heater IP01 Series (Standard)
Integrative pressurized solar water heater, 100-300L.
Multiple capacity options, cost-effective.
| Parameter | Value |
|---|---|
| Models | UNP-IP01-10 to UNP-IP01-30 (9 models) |
| Tank Capacity | 100L / 120L / 150L / 160L / 180L / 200L / 240L / 250L / 300L |
| Tubes | 10 / 12 / 15 / 16 / 18 / 20 / 24 / 25 / 30 tubes — 58/1800 Three Layer Coating |
| Absorber Area | 1.36 to 3.91 m² (depends on model) |
| Tank Inner Diameter | 380 mm |
| Tank Outer Diameter | 470 mm |
| Insulation | 50 mm High-Density PU Foam (36 kg/m³) |
| Inner Tank | 304 Stainless Steel 1.0 mm |
| Outer Tank | Galvanized Steel 0.31 mm / Stainless Steel 0.31 mm |
| Heat Pipe | Copper TP2 58×1700mm×0.45mm, condenser head 70mm Ø14mm |
| Frame | 7×7 Galv. Steel 1.5mm / SS 1.2mm, 20/27/38/45° |
| Max Pressure | 0.6 MPa (6 bar) |
| Working Temp | -15°C to 45°C |
| Loading Qty (20GP/40GP/40HQ) | 31~79 / 64~165 / 77~196 sets |
| Accessories | PT Valve, Air Vent, Check Valve, Vacuum Valve, WiFi Controller, Heating Element |
| Certifications | CE, ISO 9001 |
Customization
Available Customizations & Accessories
We offer flexible customization options to meet your specific project requirements.
- OEM / Private Label available (brand, logo, packaging)
- Custom outer tank color (RAL colors available)
- Frame angle customization for different latitudes
- Electric heating element (thermonate, adjustable)
- WiFi controller with remote monitoring
- Custom packaging and branding for export
